Description

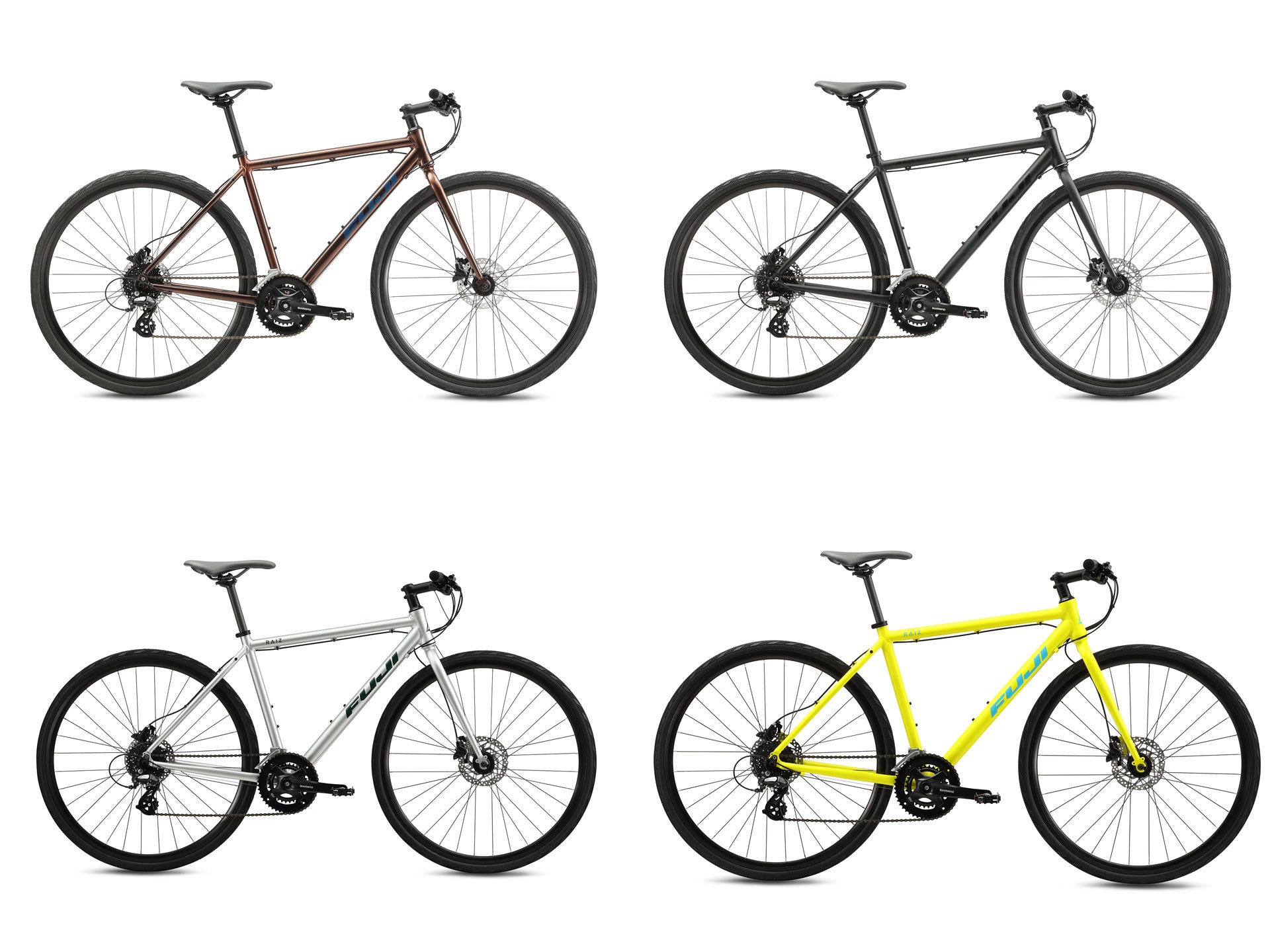

crossbike fuji Fuji Raiz Disc Japanese-style Cross Bike 700C – Asia Bicycle 亞洲單車We Will Soar to New Heights Let's move onward and upward. Designed by FUJI, the "Rise" disc brake cross bike aims to achieve handling and the joy of owning a bicycle. To enhance the overall connection between rider and bike, every detail, from frame design to component sizing, has been meticulously considered, resulting in a light and dynamic riding experience. The vibrant and high quality color scheme presents a strong identity, undoubtedly bringing
We Will Soar to New Heights
Let's move onward and upward.
Designed by FUJI, the "Rise" disc brake cross bike aims to achieve handling and the joy of owning a bicycle. To enhance the overall connection between rider and bike, every detail, from frame design to component sizing, has been meticulously considered, resulting in a light and dynamic riding experience. The vibrant and high-quality color scheme presents a strong identity, undoubtedly bringing you joy.
Design
This Cross Bike is designed for active adults, allowing you to enjoy functionality while having fun. Equipped with a disc brake system and an easy-to-maintain front double crankset, the unified Shimano drivetrain provides a solid foundation for this bike.
Additionally, some components feature compact sizing to enhance the overall sense of connection and excitement during the ride, offering a unique cycling experience. This attention to detail makes every ride more connected and dynamic.
The RAIZ DISC comes with riser handlebars, allowing for a lighter and more flexible riding posture. Its generous tire clearance allows for future size upgrades, adapting to different needs and situations.
Finally, it also includes a center kickstand mount for added practicality and convenience.
Frameset
Frame
Fuji A2-SL alloy
Round tube design
Dual bottle cage mounts
Fork
Fuji steel straight fork
1-1/8”
Drivetrain
Rear Derailleur
Shimano ALTUS
8 speed
Front Derailleur
Shimano Tourney
TY-710
Shifter
Shimano Altus
2X8 speed
SL-M315
RapidFire Plus
Crankset
Shimano TY-5012
Alloy crank
46/30T
Cassette
Shimano cassette
8 speed
11-32T
Chain
KMC narrow chain
8 speed
Brake System
Brake Lever
Shimano MT200 hydraulic disc brake
Brake Caliper
Shimano MT200 hydraulic disc brake
Brake Rotor
Shimano 160mm disc
Stainless steel
SM-RT26
Wheelset
Wheelset
Fuji custom alloy clincher
Front and rear quick release
32 holes
Tire
Chaoyang Kestrel
700×32c
Presta valve
Control Components
Handlebar
Fuji alloy
⌀25.4mm
Length: 540mm
Stem
⌀25.4mm
Length: See size chart
Seatpost
Fuji micro-adjustable alloy seatpost
⌀27.2mm
Saddle
Fuji custom saddle
Sizes
Frame Size
15"
17"
19"
Recommended Rider Height
155-167cm
161-173cm
168-180cm
Weight
~11.2kg
| Frame Size | 15” | 17” | 19” | |
|---|---|---|---|---|
| A | Seat tube center to top | 381 | 432 | 483 |
| C | Effective top tube length | 520 | 540 | 555 |
| D | Head tube length | 100 | 100 | 110 |
| B | Seat tube angle | 75 | 74 | 73 |
| E | Head tube angle | 69 | 70 | 71 |
| G | Chainstay length | 440 | 440 | 440 |
| F | Wheelbase | 1043.3 | 1045.2 | 1042.6 |
| M | Fork offset | 50 | 50 | 50 |
| I | Bottom bracket drop | 60 | 60 | 60 |
| J | Reach | 378.7 | 388.6 | 390.9 |
| N | Standover height | 719.1 | 744.5 | 773.9 |
| Stem length | 80 | 90 | 100 | |
| Handlebar width | 540 | 540 | 540 | |
| Crank length | 170 | 170 | 170 | |
| Recommended rider height | 155-167cm | 161-173cm | 168-180cm |
